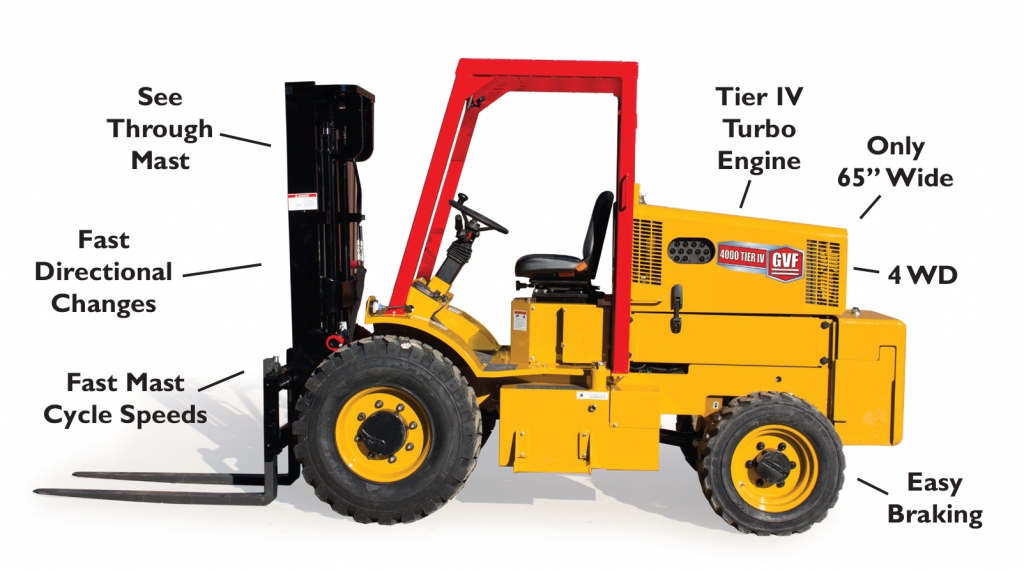

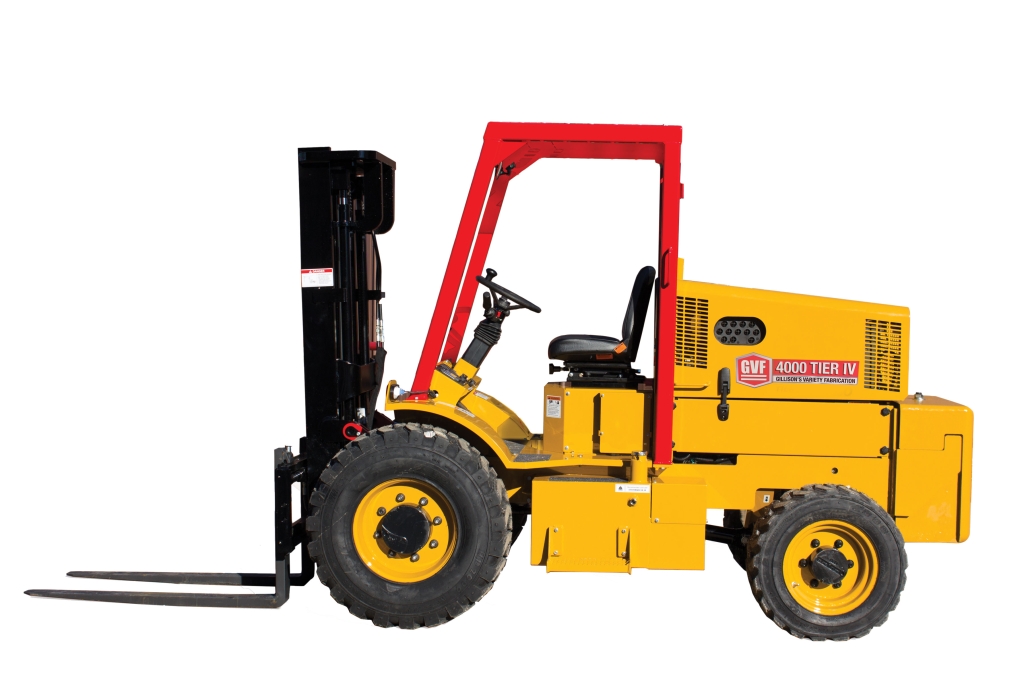

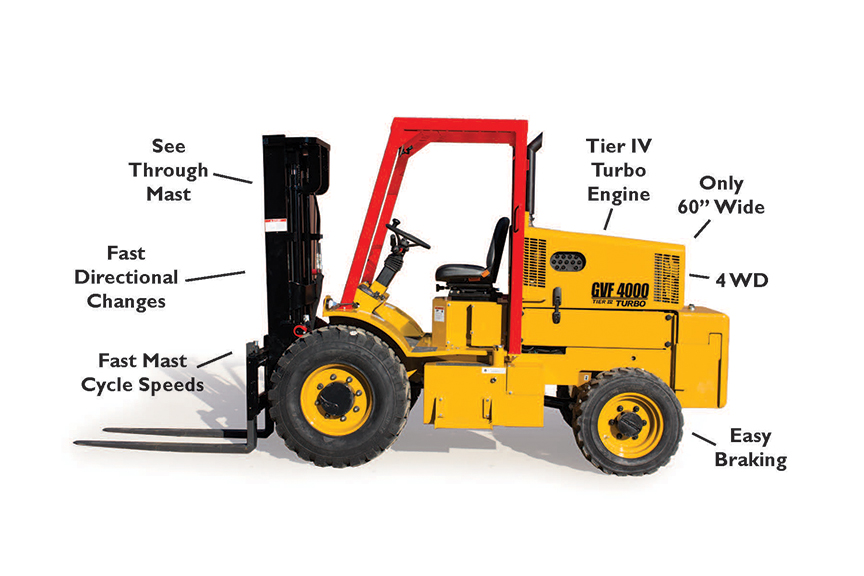

GVF 4000 Rough Terrain Forklift

This forklift is a compact, fast machine designed for working in narrow rows and tight spaces. It’s rugged and operates smoothly. It’s small - yet it has all of the features, power and speed of the larger GVF lifts.

GVF 4000 has a compact design with serviceability still in mind. The hood flips up 90° and the side panels remove to allow access to everything on the engine. Easily access the transmission and hydraulic components just by simply removing covers.

  • Kohler, Tier IV, Turbo Diesel Engine
  • 4 wheel drive
  • See through mast
  • 42” carriage with 6 rollers
  • 8” side shift in carriage
  • Independent power assisted braking  which allows operator to use the brakes for turning and decreases pedal effort required for braking which results in better performance and less operator fatigue.
  • 4 flood lights - 2 front, 2 rear
  • LED direction indicator lights
  • LED warning flasher lights
  • Backup alarm
  • Horn
  • SMV emblem
  • Tilt and telescoping steering column
  • Suspension seat
  • Engine pre cleaner
  • Grid heater for cold start
  • Vertical exhaust
  • Rear view mirror
  • 4 section hydraulic valve
  • Painted with high quality  urethane paint
  • Options:
    • Warning beacon
    • Bin clamp
    • Bin dumper
    • Rear fender
    • Transmission brake
    • Load backrest
    • Soft Ride kit
    • Solid Tires
GVF 4000 Rough Terrain Forklift



GVF 4000 Rough Terrain Forklift



   Download a Brochure



GVF Rough Terrain Forklift Comparison



GVF
4000

GVF
5000

GVF
6000

GVF
8000

Overall
Weight

9,100
lbs.

12,000 lbs.

13,000 lbs.

16,190 lbs.

Lift Capacity at 24" load center

4,000
lbs.

5,000 lbs.

6,000 lbs.

8,000 lbs.

Standard Lift Height

10'

12'

12'

12'

Overall Length

124"

139.5”

139.5”

158”

Overall Width

60"

80”

80”

87”


Rough Terrain Forklift size comparison, GVF 4000 and GVF 5000
